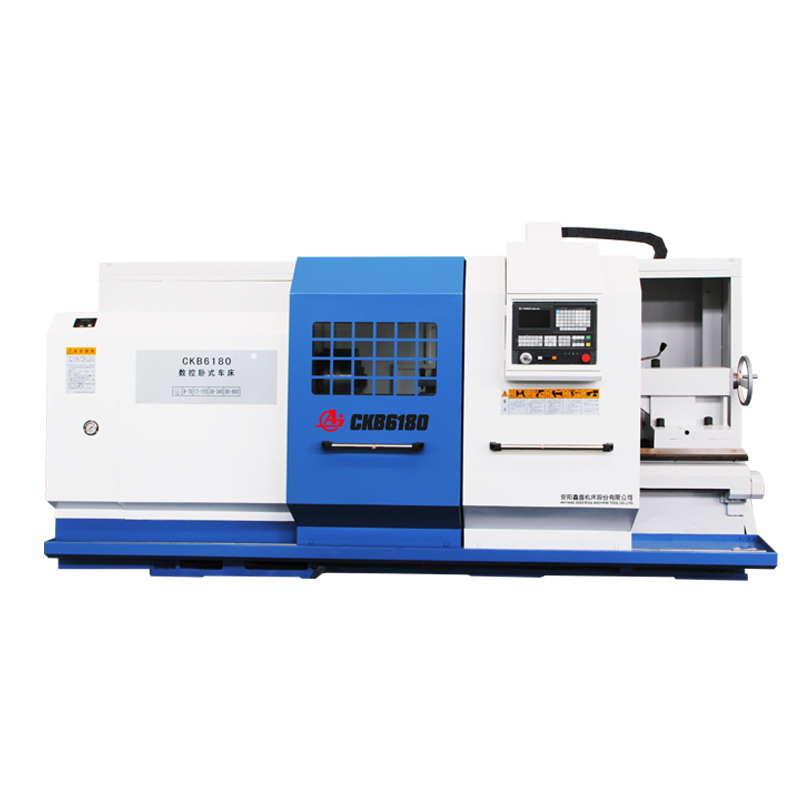

CKB6180/100(2Ton) heavy duty cnc lathe

CKB6180/61100、CKBJ6180/61100、CKBP6180/61100 Series are economical and practical CNC lathes. With optimized structures, unfailing performance, high quality, simple programming, and easy handing, they are suitable for turning of complicated shaft, sleeve, and disk type work-pieces such as turning lf internal and external cylindrical, conical, arc surfaces and various threads, and even drilling, boring and reaming holes. And they are especially fit for turning of diversified work-pieces on small and medium batches. They are of high versatility, high efficiency, low inferiority and good conformability. So to be widely used in various trades, such as automobile industry, petroleum industry, military industry, and so on.

ITEM	Unit	CKB/CKBP/CKBJ6180	CKB/CKBP/CKBJ61100
CAPACITIES
Swing over bed	mm	800	1000
Swing over carriage	mm	480	680
Max.length of workpiece	mm	1000 1500 2000 3000 4000 5000 6000
Max.turning length	mm	850 1350 1850 2850 3850 4850 5850
Pan of guideway	mm	600
Max.weight of workpiece	Kg	2000
SPINDLE
Spindle nose	mm	C11/C15
Spindle bore	mm	100/140(Optional)
Taper hole of spindle		1:20/120 1:20/150(Optional)
Range of spindle speeds	r/min	CKB/CKBP：8~800,CKBJ：6~750
No.of spindle speeds		Stepless(CKB)
Chuck	mm	400 3-jaw manual
Center height from bed	mm	400	500
FEED
Min.feed increment	mm	0.001/0.001
Rapid speeds	mm/min	4000/5000
Max.travel	mm	420
TURRET
Turret working position		Vertical 4-position（V6/V8 Optional）
Indexing time	s	2.4
indexing repeatility	mm	0.008
Section of tool shank	mm	40x40
TAILSTOCK
Dia. of tailstock quill	mm	100
Travel of tailstock quill	mm	250
Taper hole of tailstock quill		Morse6
OTHERS
Workpiece accuracy		IT6
Surface roughness	μm	Ra1.6
Main motor power	Kw	15
Lathe mass	kg	4800 5300 5600 6000 6800 7600 8250
Length	mm	3605 4105 4645 5600 6430 7600 8485
Width	mm	2219
Height	mm	1830/2010
CNC Control system		FANUC 0i-TF/SIEMENS 828D/GSK980TDC
